Terrain calculated zmanim

I don’t know the sugya well but I think there are plenty that hold that zmanim are based off when sunset and sunrise are actually based on you’re height, and the height at which the sun disappears. meaning you’d have to calculate the zmanim for youre exact location (city isn’t enough) and calculate if there’s any terrain blocking the path between yourself and the sun which there almost always is closer to nightfall and sunrise and calculate back finding the time sunset actually is. there’s no such program out there that does this as far as I’m aware but I tried creating one but since there’s no such program i can’t test it’s accuracy. I believe its extremely inaccurate. just putting it out there if anyone is interested checking it out and maybe improving

python sloppy code

import datetime
import pytz
import numpy as np
import re
from skyfield.api import load, Topos
from skyfield import almanac
import srtm # You may need to run: pip install srtm.py
import rasterio

— 1. Coordinate Parsing Helper —

def parse_dms(dms_str):
“”“Parses a DMS coordinate string (e.g., “N 41° 5’ 59.8"”) into decimal degrees.”“”
parts = re.split(‘[^\d\w.]+’, dms_str)
deg = float(parts[1])
mnt = float(parts[2])
sec = float(parts[3])

decimal = deg + (mnt / 60.0) + (sec / 3600.0)

if parts[0].upper() in ('S', 'W'):
    return -decimal
return decimal

— 2. Core Calculation Functions —

def get_terrain_adjusted_event(event_type, latitude, longitude, altitude, date_obj):
“”"
Calculates the terrain-adjusted time for sunrise or sunset.

Args:
    event_type (str): Either 'sunrise' or 'sunset'.
    latitude (float): Latitude of the observer.
    longitude (float): Longitude of the observer.
    altitude (float): Altitude of the observer in meters.
    date_obj (datetime.date): The date for the calculation.

Returns:
    datetime.datetime: The terrain-adjusted event time in UTC, or None.
"""
# --- Setup ---
ts = load.timescale()
eph = load('de421.bsp')
observer_location = Topos(latitude_degrees=latitude, longitude_degrees=longitude, elevation_m=altitude)

# --- Find Standard Event Time (Sea Level) ---
t0 = ts.utc(date_obj.year, date_obj.month, date_obj.day)
t1 = ts.utc(date_obj.year, date_obj.month, date_obj.day + 1)

f = almanac.sunrise_sunset(eph, observer_location)
times, events = almanac.find_discrete(t0, t1, f)

event_code = 1 if event_type == 'sunrise' else 0
is_event = (events == event_code)

if not np.any(is_event):
    print(f"Standard {event_type} not found for this date.")
    return None

standard_event_time = times[is_event][0]

# --- Get Azimuth and Calculate Horizon ---
sun = eph['sun']
earth = eph['earth']
astrometric = (earth + observer_location).at(standard_event_time).observe(sun)
_, az, _ = astrometric.apparent().altaz()
event_azimuth = az.degrees

print(f"Calculating horizon profile for {event_type} at azimuth {event_azimuth:.2f}°...")
horizon_angle = calculate_horizon_angle(latitude, longitude, altitude, event_azimuth)
print(f"Calculated horizon angle: {horizon_angle:.2f}°")

# --- Search for Terrain-Adjusted Time ---
search_start = standard_event_time.utc_datetime() - datetime.timedelta(hours=1)
search_end = standard_event_time.utc_datetime() + datetime.timedelta(hours=1)

time_step = datetime.timedelta(minutes=1)
current_time = search_start

# For sunrise, we look for the moment the sun *crosses above* the horizon angle.
# For sunset, we look for the moment the sun *dips below* the horizon angle.

# Find the sun's altitude at the start of our search
t_start = ts.from_datetime(current_time.replace(tzinfo=pytz.utc))
alt_start, _, _ = (earth + observer_location).at(t_start).observe(sun).apparent().altaz()
is_below_horizon_at_start = alt_start.degrees < horizon_angle

while current_time <= search_end:
    t = ts.from_datetime(current_time.replace(tzinfo=pytz.utc))
    alt, _, _ = (earth + observer_location).at(t).observe(sun).apparent().altaz()

    is_currently_below = alt.degrees < horizon_angle

    if event_type == 'sunrise' and is_below_horizon_at_start and not is_currently_below:
        # We started below and are now above: this is sunrise
        return current_time
    elif event_type == 'sunset' and not is_below_horizon_at_start and is_currently_below:
        # We started above and are now below: this is sunset
        return current_time

    current_time += time_step

print(f"Could not find terrain-adjusted {event_type} in the search window.")
return None

def calculate_horizon_angle(lat, lon, alt, azimuth, max_distance_km=20):
“”"
Calculates the horizon angle in a specific direction using the elevation library.
“”"

# It will download necessary data and cache it in a file called 'srtm_1_30m_41_75.tif' or similar.
import elevation
import rasterio

# Ensure the elevation data for the area is downloaded.
# The output is the path to the data file.
elevation.clip(bounds=[lon-0.5, lat-0.5, lon+0.5, lat+0.5], output='dem.tif')
dem_path = '/home/johnw/.cache/elevation/SRTM1/dem.tif'  # Use your downloaded DEM file

min_distance_m = 1000
num_points = 100
angles = []

with rasterio.open(dem_path) as dem:
    for i in range(1, num_points + 1):
        distance = min_distance_m + ((i / num_points) * (max_distance_km * 1000 - min_distance_m))


        # Calculate the coordinates of the point to check
        d_lat = distance * np.cos(np.radians(azimuth)) / 111320
        d_lon = distance * np.sin(np.radians(azimuth)) / (111320 * np.cos(np.radians(lat)))

        point_lat = lat + d_lat
        point_lon = lon + d_lon

        try:
            # Get elevation from the downloaded DEM file
            terrain_elevation = next(dem.sample([(point_lon, point_lat)]))[0]
            if terrain_elevation > -1000: # Filter out invalid data
                height_diff = terrain_elevation - alt
                angle = np.degrees(np.arctan2(height_diff, distance))
                angles.append(angle)
        except Exception:
            # This can happen if we are at the edge of the available data, just ignore the point
            pass

return max(angles) if angles else 0.0

if name == ‘main’:
import elevation # Import here to use for altitude lookup

print("--- Terrain-Adjusted Zmanim Calculator ---")

# --- Get Location Input ---
lat_str = input("Enter Latitude (e.g., 41.0999 or 'N 41 5 59'): ") or '41.087529'
lon_str = input("Enter Longitude (e.g., -74.0083 or 'W 74 0 30'): ") or '-74.060390'

# --- Parse Coordinates ---
try:
    if '°' in lat_str or re.search('[a-zA-Z]', lat_str):
        latitude = parse_dms(lat_str)
        longitude = parse_dms(lon_str)
    else:
        latitude = float(lat_str)
        longitude = float(lon_str)
except Exception as e:
    print(f"Error: Could not understand coordinates. Please try again. Details: {e}")
    exit()

print(f"\nParsed Location -> Lat: {latitude:.4f}, Lon: {longitude:.4f}")

# --- Automatically Get Altitude ---
try:
    print("Fetching altitude for your location...")
    dem_path = elevation.clip(bounds=[longitude-0.1, latitude-0.1, longitude+0.1, latitude+0.1], output='dem_altitude.tif')
    with rasterio.open(dem_path) as dem:
        auto_altitude = round(next(dem.sample([(longitude, latitude)]))[0])
    print(f"Detected altitude: {auto_altitude} meters.")

    manual_altitude = input(f"Press Enter to accept, or type a different altitude (in meters): ")
    if manual_altitude.strip():
        altitude = int(manual_altitude)
    else:
        altitude = auto_altitude
except Exception as e:
    print(f"Could not automatically determine altitude. Error: {e}")
    altitude = int(input("Please enter your altitude in meters: ")) or 111

# --- Get Date and Timezone ---
default_date = datetime.date.today().strftime('%Y-%m-%d')
date_str = input(f"Enter Date (YYYY-MM-DD) [default: {default_date}]: ") or default_date

# You can find your timezone here: https://en.wikipedia.org/wiki/List_of_tz_database_time_zones
local_timezone_str = input("Enter your Timezone (default: America/New_York): ") or "America/New_York"

print("-" * 40)

# --- Calculations ---
target_date = datetime.datetime.strptime(date_str, '%Y-%m-%d').date()
local_tz = pytz.timezone(local_timezone_str)

sunrise_utc = get_terrain_adjusted_event('sunrise', latitude, longitude, altitude, target_date)
print("-" * 40)
sunset_utc = get_terrain_adjusted_event('sunset', latitude, longitude, altitude, target_date)
print("-" * 40)

# --- Display Results ---
if sunrise_utc and sunset_utc:
    sunrise_local = sunrise_utc.astimezone(local_tz)
    sunset_local = sunset_utc.astimezone(local_tz)

    print("RESULTS (Terrain-Adjusted):")
    print(f"  Sunrise: {sunrise_local.strftime('%I:%M:%S %p %Z')}")
    print(f"  Sunset:  {sunset_local.strftime('%I:%M:%S %p %Z')}")

    # Calculate Sha'os Zmaniyos (Halachic Hours)
    day_duration = sunset_utc - sunrise_utc
    shaah_zmanis = day_duration / 12

    # Calculate Zmanim based on Gr"a
    szks_gra = sunrise_utc + (3 * shaah_zmanis)
    szt_gra = sunrise_utc + (4 * shaah_zmanis)

    szks_gra_local = szks_gra.astimezone(local_tz)
    szt_gra_local = szt_gra.astimezone(local_tz)

    print(f"\n  Shaah Zmanis (Gr\"a): {str(shaah_zmanis).split('.')[0]}")
    print(f"  S\"Z Krias Shema (Gr\"a): {szks_gra_local.strftime('%I:%M:%S %p %Z')}")
    print(f"  S\"Z Tfilah (Gr\"a):      {szt_gra_local.strftime('%I:%M:%S %p %Z')}")
else:
    print("\nCould not calculate all zmanim due to missing sunrise or sunset time.")

I thought that there are zmanim apps that try to do it.

no. some try to check based on elevation instead of assuming you’re at sea level. my script checks based on if there’s terrain blocking the azimuth to the sun at the time of sunset which means if there’s a mountain for example, it will calculate when the sun sets behind the mountain instead of when it sets at sea level.

i know this might be confusing that there are so many ways to calculate but typical is all sea level.

@Rafael thanks for liking my post I totally forgot about this :grinning_face::grinning_face:

Now that you’re reminding me, I now know more that in yerushalaim for example they go with this opinion and the main sunset calculated here is based on your elevation and terrain but only big natural terrain. I don’t know the details extractor l exactly. Just scooter thing to add to my list of things to do.

@Rafael thanks for liking my post I totally forgot about this :grinning_face::grinning_face:

Heh. I’m also aware that there’s a Shitah that elevation only counts for sunset and sunrise, but other Zmanim are calculated without it. It’s possible that it’s the same for the terrain.

I’m also aware that there’s a Shitah that elevation only counts for sunset and sunrise, but other Zmanim are calculated without it.

This is the opinion of most poskim. Other zmanim (sof zman krias shema, tefillah, etc.) are calculated based on sea-level sunrise & sunset. See KosherJava docs for ZmanimCalendar.isUseElevation() to read on the other opinions.

If you’re interested in further reading, grab yourself a copy of Dvar Yom. It’s an excellent read.
There, he discusses the machlokes Rishonim that involves this particular inyan, IIRC.

There is no geometric difference between the results of observer and horizon at same elevation vs observer and horizon at sea-level.
MyZmanim actually calculates observer and horizon elevated by default, whereas KosherJava calculates with both at sea-level by default. But the numbers end up just about the same.
Can you please clarify what you were referring to?

I meant if they are different. Say you’re 100 meters above sea level and you’re in a valley where the mountains around make the sun disappear earlier.

Thanks for the sources. I’ll definitely check them out.

Gotcha. Yes, that’s a minority opinion and it’s discussed at detail in Dvar Yom.

Can’t find a Sefer with that name on oitzar hachachma or Hebrew books. Is it only in stores? Thanks

It can likely be picked up at your local book store as well - call them and ask.

Just made this:

Website for zmanim including terrain calculated:

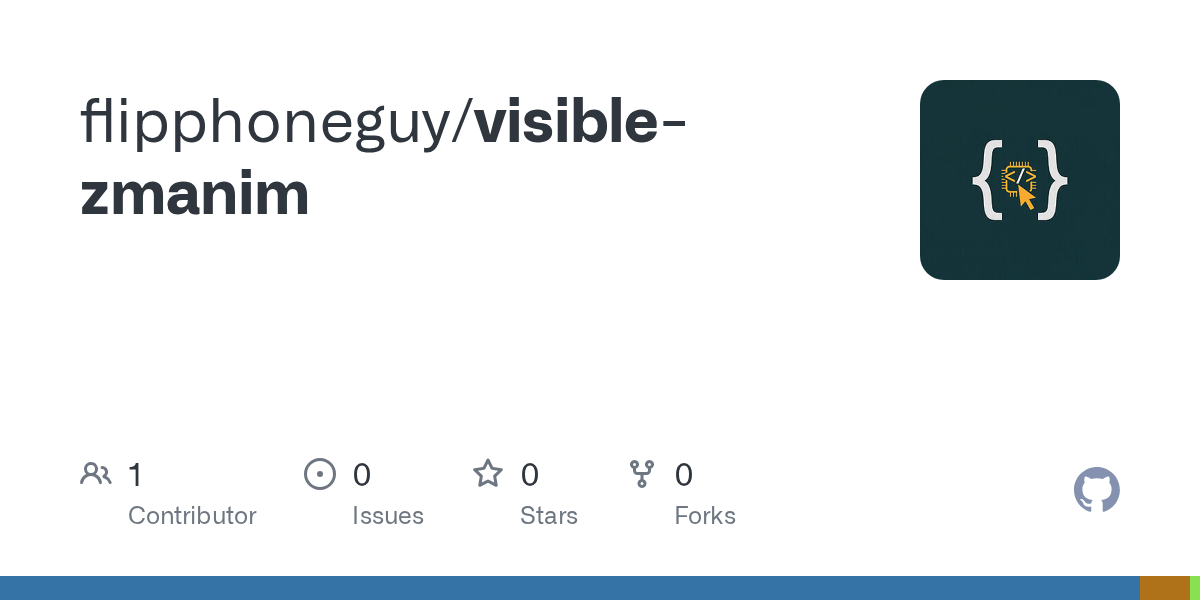

Link to source code on GitHub:

I believe that it’s extremely accurate (at least within thr USA and England). Check out docs in repo for more

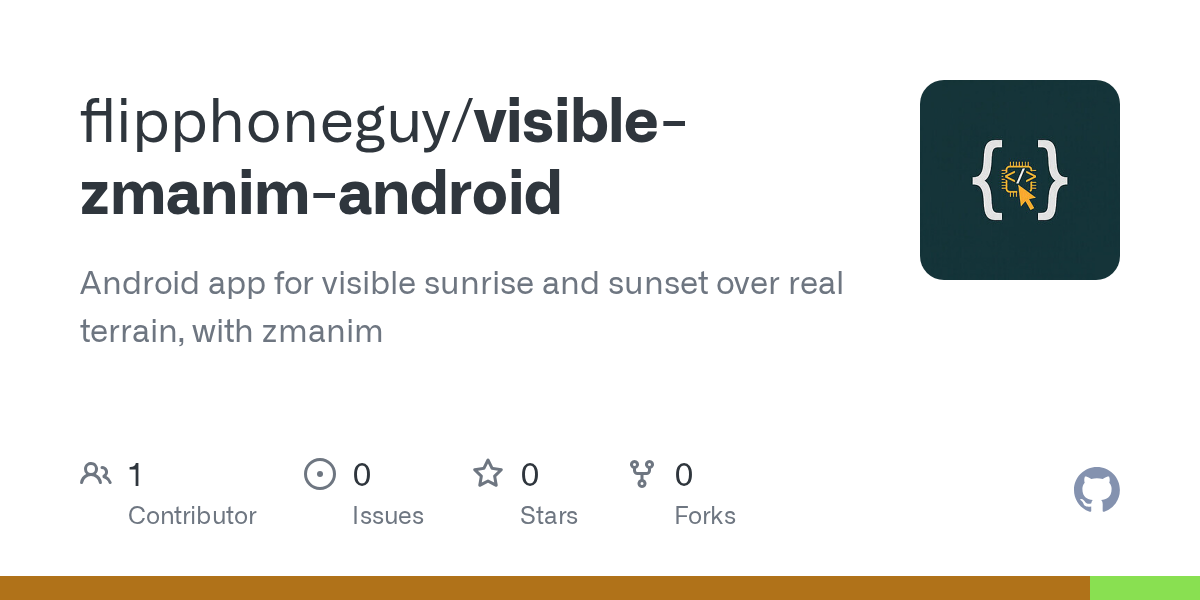

https://github.com/flipphoneguy/visible-zmanim-android/releases/latest/download/VisibleZmanim.apk
